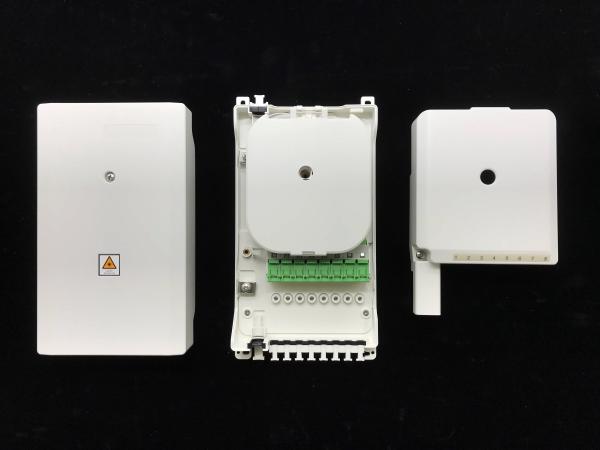

Anti UV Fiber Optic Junction Box , Fiber Access Terminal Box For CATV System

Introduction

This distribution box terminates outside optical cables with up to 8 fibers; it allocates 8 adapters for connecting with max 8 drop cable pigtails, it is also suitable for using with mini splitters. The box works under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTH networks.

Features:

1. This box could be used for wall-mounted applications;

2. Suit for Outdoor & Indoor.

3. Waterproof, Anti-UV, Ultra violet resistant and rainfall resistant.

4. Light weight, small cubage, small installation size, reliable sealing.

5. Could be connected FTTH Drop cables inside.

6. The base and cover of the box adopts “self-clip” &”screw-clip” two times lock method, which is better to use in outdoor for high sealing and waterproof.

Application:

FTTH, FTTB, FTTC

Telecommunication Network

Local Area Network

CATV

Specification

1). Environmental Requirement

Working temperature:-40℃~+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa~106Kpa

2). Main Technical Data

Insertion loss:≤0.2dB

UPC return loss:≥50dB

APC return loss:≥60dB

Life of insertion and extraction:>1000 times

3). Thunder-proof Technical Data

The grounding device is isolated with the cabinet, isolation resistance is no less than2000MΩ/500V(DC);IR≥2000MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover; U≥3000V
